Hwahsi Single Head Double Head Row Spot Welding Machine,Manual Spot Welder,Wire Welding Machine

Name: Hwahsi Single Head Double Head Row Spot Welding MachineManual Spot WelderWire Welding Machine
Brand: HWASHI
Price: 1 USD

Quality Hwahsi Single Head Double Head Row Spot Welding Machine,Manual Spot Welder,Wire Welding Machine for sale

Brand Name : HWASHI

Model Number : WL-SQ-MF160Kx6

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 60 working days after received your payment

Packaging Details : sea worthy wooden package

Surface Treatment : Galvanized

Size : According To Your Products

Vibration Testing Time : 0 To 1 Hour

Power Source : Electric

Water Pipe Size : G1 1/4

Warranty : 12 months

Service Life : 8-10 Years

Welding Method : Resistance Welding

Material : Steel

Punching Efficiency : 15-25sec

Welding Power : 225KVA X 4

Type : Tank Container

Weight : 3000kg

Contact Now

Hwahsi Single Head Double Head Row Spot Welding Machine,Manual Spot Welder,Wire Welding Machine

Hwahsi Single Head Double Head Row Spot Welding Machine , Manual Spot Welder,Row welder
Wire mesh row welding special machine, utilizes the features of smooth surface, the unified thickness of wire diameter and large welding area of wire rod, and through using special fixture, to achieve highly efficiency, fast speed, and little deformation of welding. Except for square and rectangle, it can be used to weld triangle, circle and even other kinds of odd flat net.AC pulse spot welding machine utilizes the general mains supply to lower the voltage and increase the electric curent, Such kind of lowvoltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due tothe resistance of work piece, high temperature will occur so the metal wil therefore generate high heat to make the work piecesin molten condition. Thus, the purpose of welding the two work pieces is achieved.

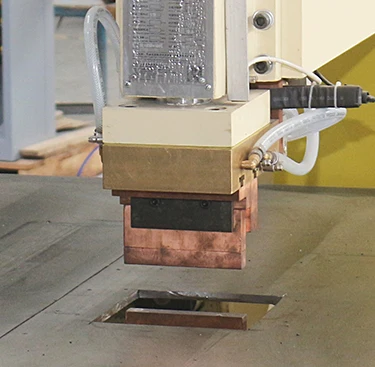

 Custom Welding Electrode
According to the characteristics of the mesh, the appropriate welding electrode is processed.

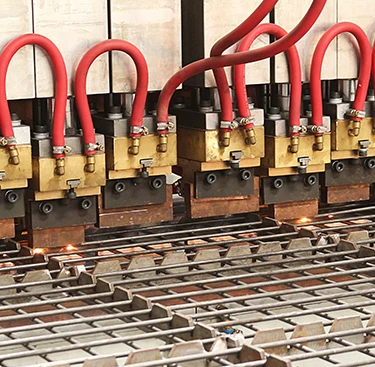

 Single/Multiple Welding Head
Design multiple welding heads according to different sizes of mesh, and the welding efficiency is higher.

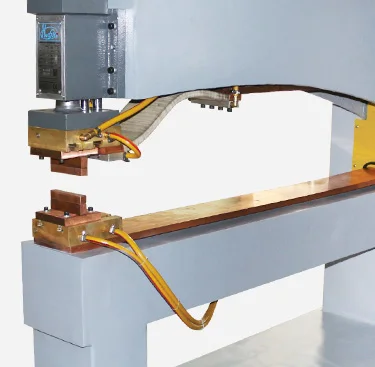

 Longer Welding Arm
Production of extended welding arm, suitable for various sizes of mesh.
 Manual/Automatic Welding
According to each customer demand, provide manual welding type and automatic welding type.
Other related equipment
Welding Wire Mesh Fence Machine , Reinforcing full automatic stainless steel welded wire mesh
Refrigerator Wire Shelf Production Line Machine Steel Wire Mesh Spot Welding Machine is H-type wire mesh multi-head automatic welding machine. It adopts ten electrodes and equips with automatic feeding system. The wire will be dropped to the fixture automatically to achieve full automatic loading. After that it will automatically execute the feeding and welding. Its one-way and double-layer feeding device can move forward and back automatically to finish the welding and the welding distance can be set at random .It is suitable for the batch production of wire mesh with multiple-points welding. The welding manner is one-way double-layer automatic stepping feeding with 10 welding heads. The effective welding width is 1200mm while the effective welding length is 1000mm. This machine is composed of main machine body, welding transformer, pneumatic drive device, upper and lower electrodes, automatic wire filling device, electrical control system, cooling system, and PLC operation control system.
 Intelligent welding control system
Automatic welding by inputting coordinate data of welding position, welding current and other data.

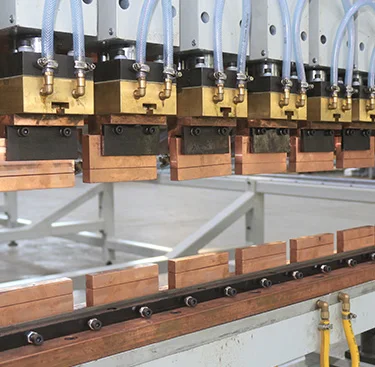

 Welding Heads and Fixtures
Processing and design according to the drawings of each wire shelf product. (customized)

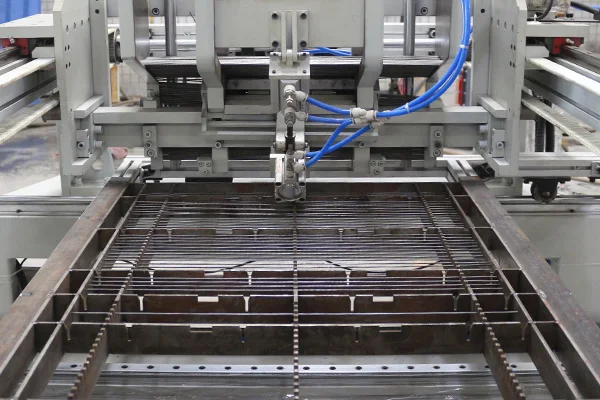

 Automatic Wire Filling System
You can put the precut straight wires into the hopper, then the wire filling machine will do the wire filling into the fixture automatically. It helps to increase the working efficiency and reduce labor force.

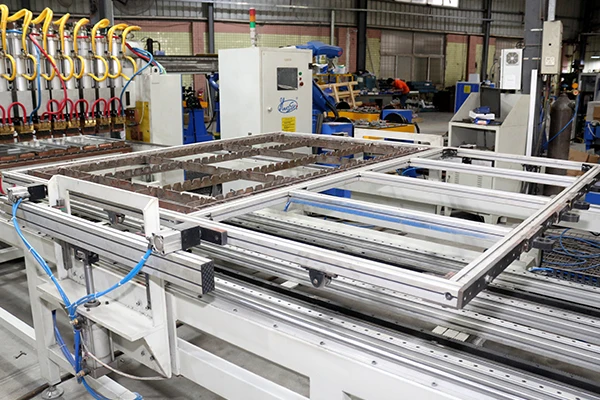

 Automatic Double-layer Feeder
When one fixture is under welding process, the wire filling system will load the wires onto the other fixture at the same time. When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased.

Input Power	380v+10%/50HZ
Rated Power	100KVA*2
Welding Power Source	1.AC Pules power /2.MF DC Power
Max. Secondary Short Circuit Currente	32kva
Maximun Wiring Speed	200m/s
Effective Welding Lenght	3000mm(Customized)
Effective Welding Width	1000mm/1200mm1400mm (Customized)
Welding Head	6 Sets/8 Sets/10 Sets (Customized)
Moving Control	Manual Drive/Automatic
The Rated Pressure	0.5Mpa
