Product Description For Automatic Copper Braided Wire Welding And Cutting Machine
This machine is designed to complete the welding and shearing automatically. Once adjusting the related parameters, it can change the shape of welding and length of cutting. The welding length is 60-100mm (adjustable). It can weld 4- 14 wires. The dimension of welding (width and length) is maximum 8x10mm and minimum 4x4.5mm (adjustable).
Features For Automatic Copper Braided Wire Welding And Cutting Machine

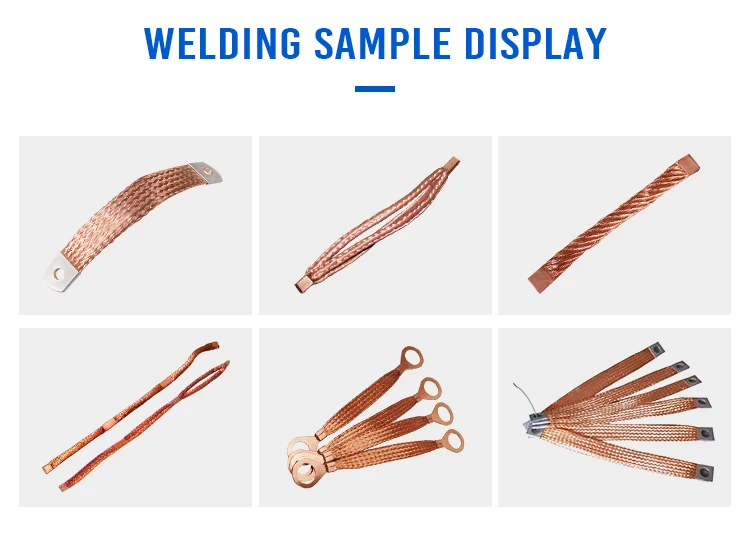

The Welding spots are good in looking, firm, stable and reliable. Well consistency of welding spots. Wide application. The machine, electricity and other mechanism could be reasonably assembled. It could be used to weld other similar products after relevant modification of microcomputer data program. One machine could serve several purposes.
Technology Description For Automatic Copper Braided Wire Welding And Cutting Machine

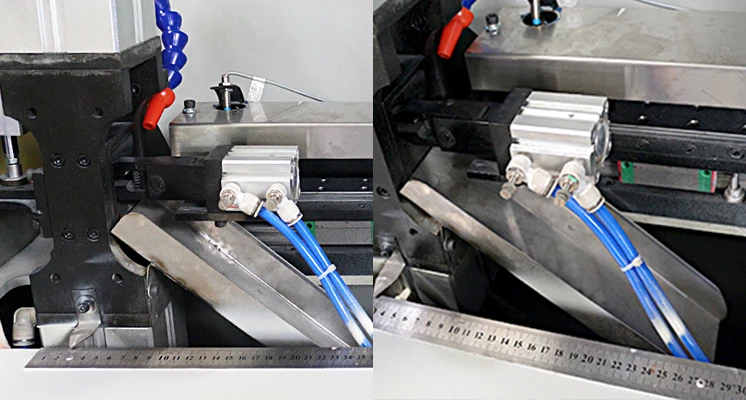

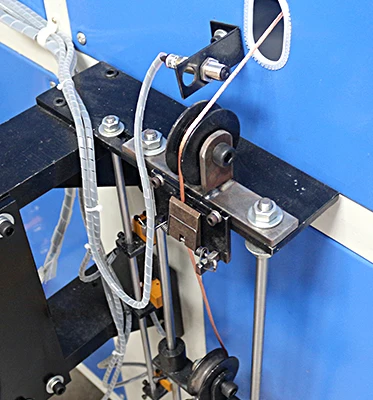

Through the feeding system-wire output wheel, the braid wire enters into the welding center to complete the process of feeding wire. Then the wire output system stop working, the welding forming device start working to press the wire on the preset position. The cylinder will press down to complete the welding. Next, the stay wire cylinder start to output the wire to preset length. When reaching the preset value, the cutting device starts cutting the wire. At last, the stay wire cylinder starts to pull out the completed wire and put it into the discharging box.
